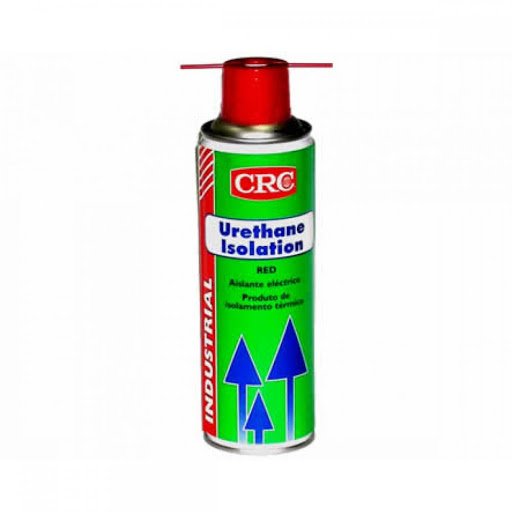

CRC Urethane Isolation (Industrial) RED – 300 ml

CRC Urethane Coats provides an air curing conformal urethane type coating that insulates electrical electronic equipment, seals out water and moisture and acts as a barrier for contaminants.

CRC Urethane Isolation (Industrial) RED – 300 ml

CRC Urethane Coats provides an air curing conformal urethane type coating that insulates electrical electronic equipment, seals out water and moisture and acts as a barrier for contaminants.

DESCRIPTION :
Clear or red one-component urethane type conformal coatings.
CRC Urethane Coats provides an air curing conformal urethane type coating that insulates electrical/electronic equipment, seals out water and moisture and acts as a barrier for contaminants. CRC Urethane Coats dry fast and adhere well. After curing they form a highly flexible film which is durable and resistant to abrasion and contaminants.
FEATURES :
  • Available in clear or red formulations:
    Clear: contains U. V.- fluorescent dye for easier quality control
    Red: provides additional corrosion resistance
  • Dries quickly to a durable, flexible and non- conductive film.
  • Excellent electrical characteristics:
    High dielectric strength
    High surface and volume resistively
  • Effective temperature range of – 40°C to + 120°C.
  • Abrasion-resistant insulator for electrical/electronic equipment and components.
  • Specifications : NSN 5970-01-017-5738.
 APPLICATION :
Urethane Clear – protective coating for:
• Printed circuit boards Urethane Red or Clear – coating for:
• Electric motor windings
• Armature coils
• Boxes
• Controls
• Commutator ends
• Terminals
• Housings
• Transformer connectors
• Bus bars
• Solenoids
• Tools.



TDS : CRC Urethane Isolation Red Data Sheet
